03 · Verification C3 · 2024-12-16 — free forecast vs radar truth, control vs radar-cycled WRF

Setup. DA cycling 14–17 Z (4 hourly 3D-Var cycles); free forecast starts at 17 Z (valid to 14 Z+1, 21 h) on d01→d02→d03 via ndown. Both branches share the same GFS lineage (fair baseline).

The event was a strong nocturnal convective line, 18–20 Z, near Arraial do Cabo (peak 64 dBZ). The d03 box (centred −22.40°, −41.75°) sits almost directly over the radar with 16 rain-gauge stations — good coverage for this scale.

Key result: the control forecast had zero hits at all precipitation thresholds on d03. Radar DA scores a single hit: POD ≥1 mm/h 0.00→0.077 (CSI 0→0.027), 1 of 13 observed gauge-hours.

d03 POD heatmap: control = 0 hits (left); radar DA scores one hit (POD 0→0.077 at ≥1 mm/h).

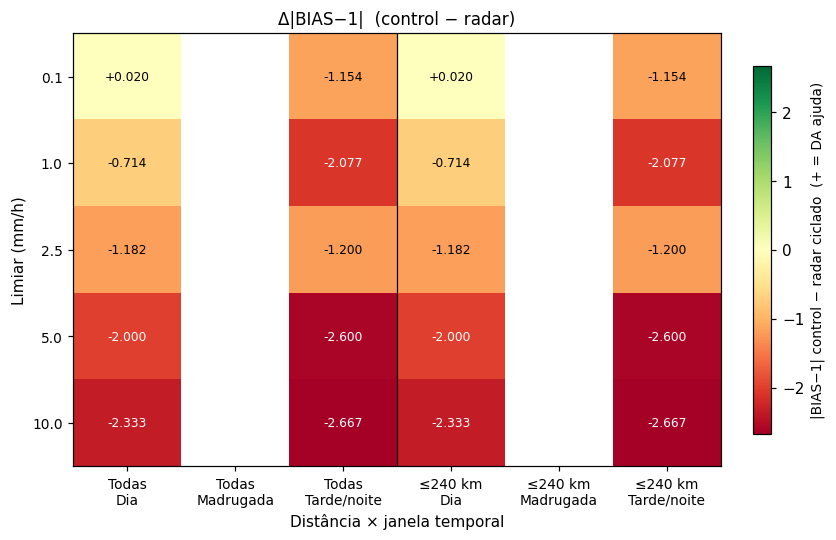

d03 headline: control missed the event entirely (0 hits at every threshold). Radar DA: POD ≥1 mm/h 0.00→0.077; ≥2.5 mm/h 0.00→0.100; ≥5 mm/h 0.00→0.000. BIAS rises to ≈ 1.9 at ≥1 mm/h. One hit out of 13 observed gauge-hours: indicative, not statistical.

Radar blind spots. The truth field here is a single radar, and ~19% of d03 is blocked to it (W/NW behind the Serra do Mar, plus man-made dead sectors). See the beam-blockage study — found two ways, the radar's own persistently dead sectors and a terrain beam-blockage simulation — for where rain can fall unseen and why those gates are masked out of the assimilation and the verification truth field.

Interactive CREF viewer

Obs × control × radar DA — composite reflectivity, per domain, per hour

Open viewer →

Tables (from MET verification CSVs)

Figures

Station

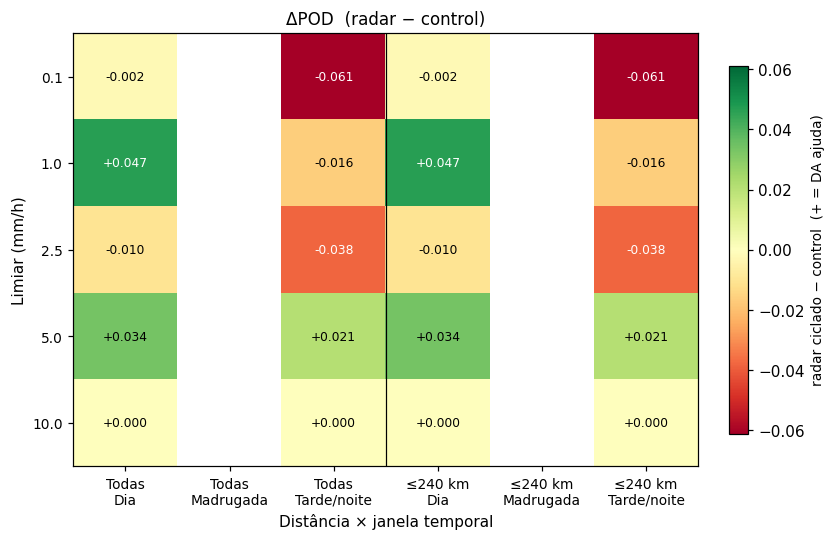

POD heatmap — d02

Station

POD heatmap — d03

Control: 0. Radar: 0.077 at ≥1 mm/h.

Station

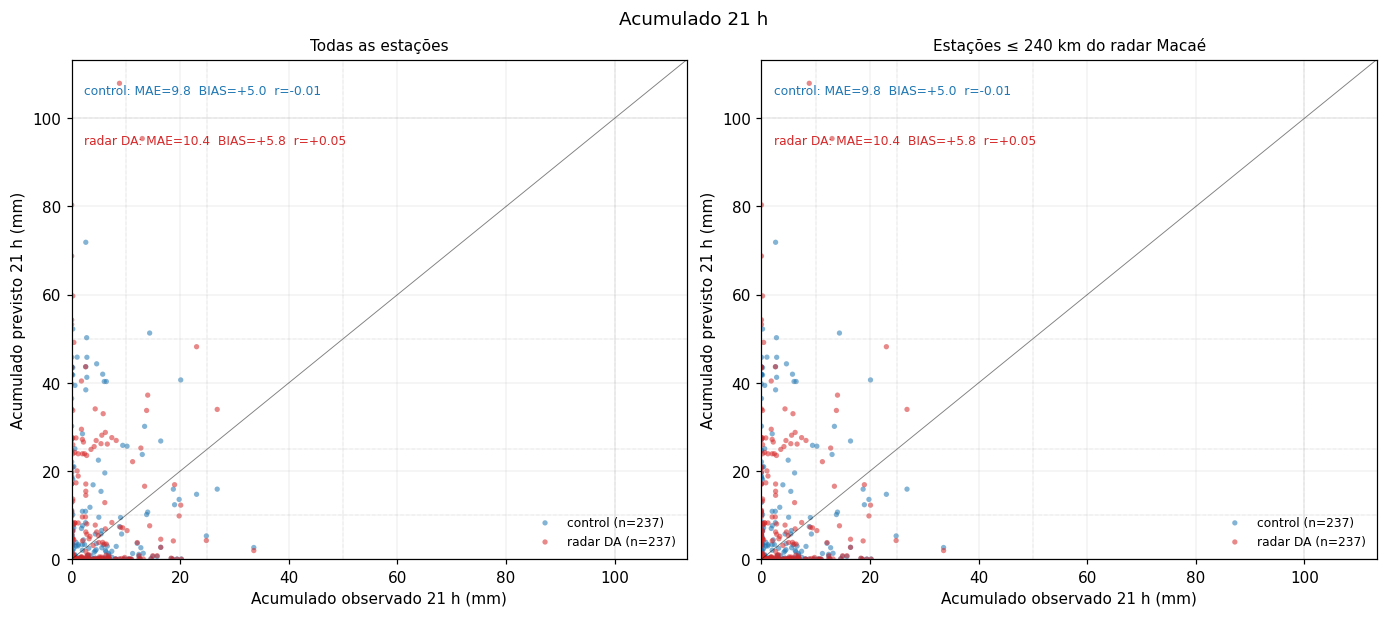

Scatter — d02

MAE 9.8→8.5 mm.

Accumulation

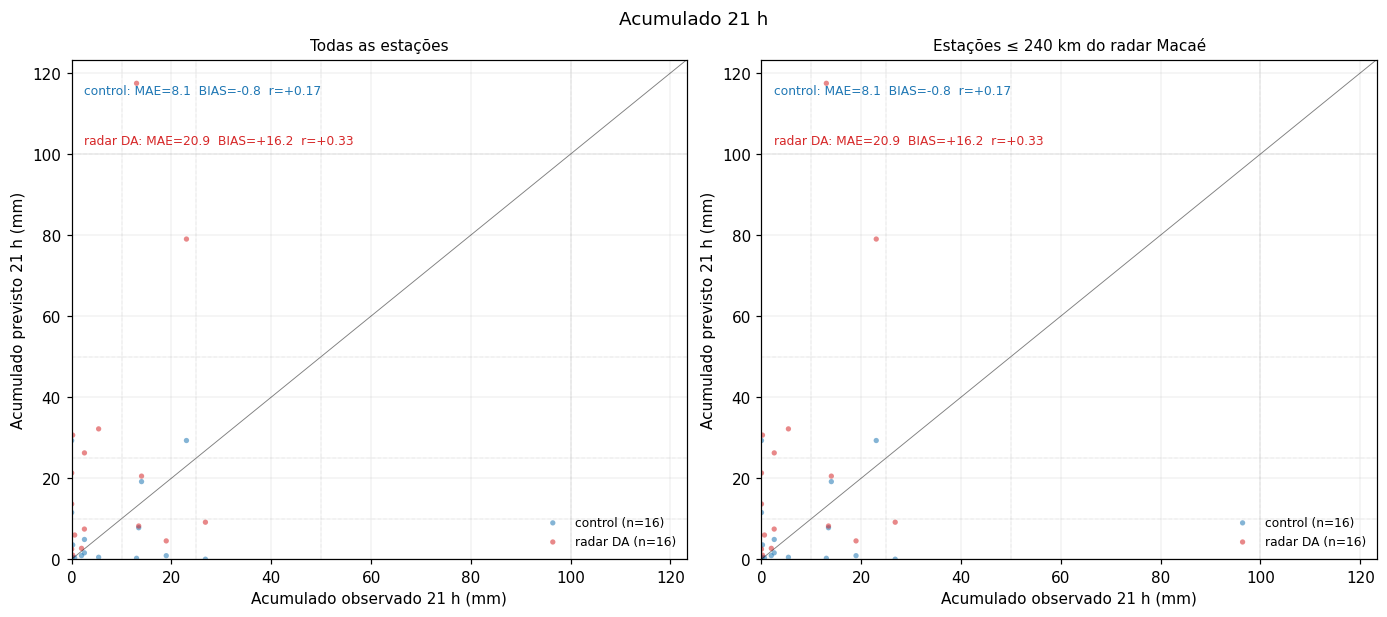

Scatter — d03

MAE 8.1→22.0 mm; corr 0.17→−0.06.

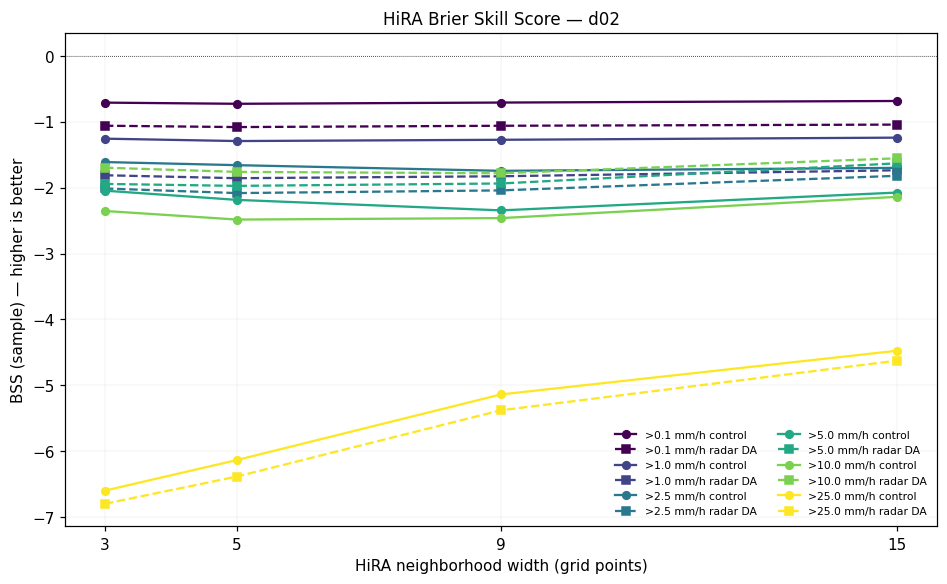

HiRA

BSS — d02

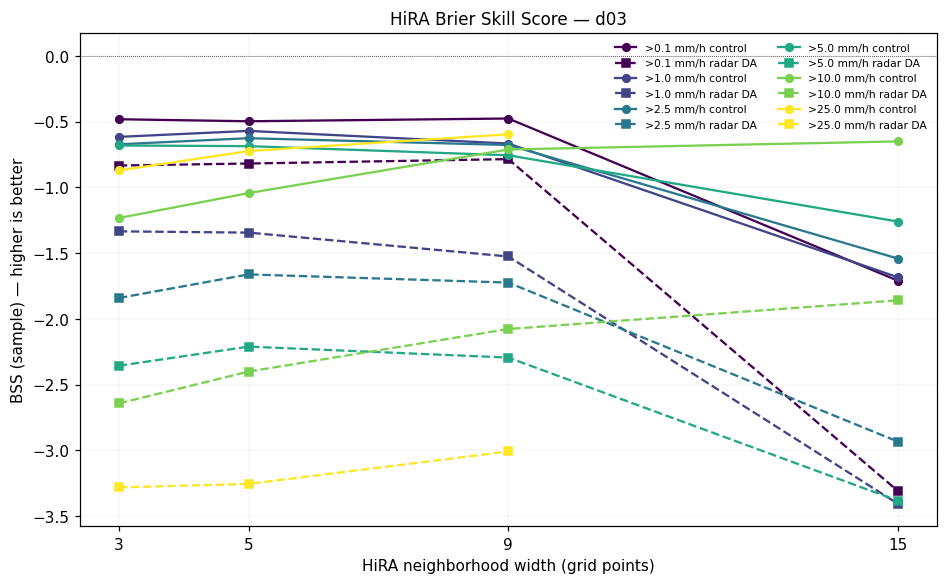

HiRA

BSS — d03

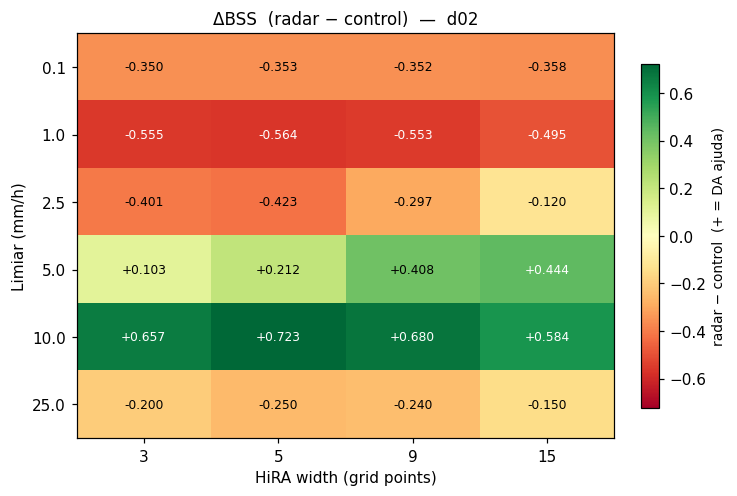

HiRA

ΔBSS — d02

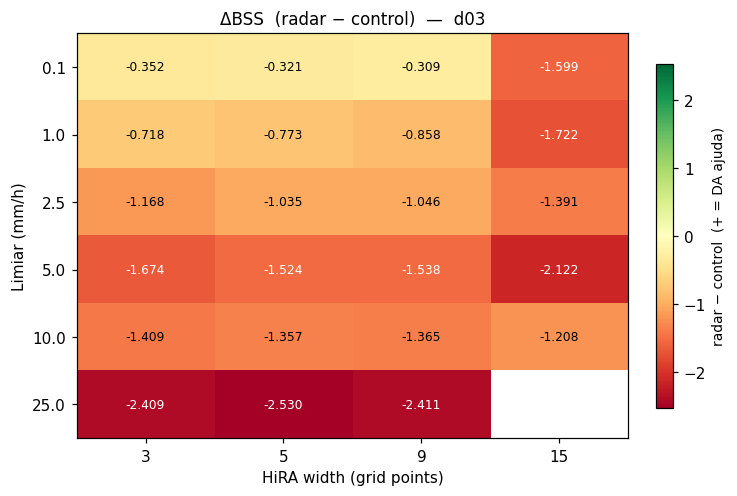

HiRA

ΔBSS — d03

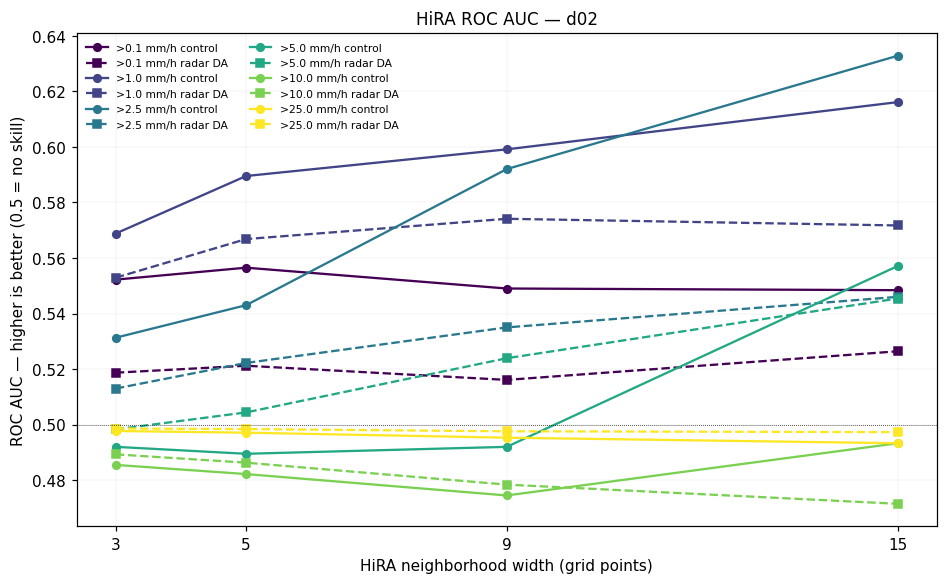

HiRA

ROC AUC — d02

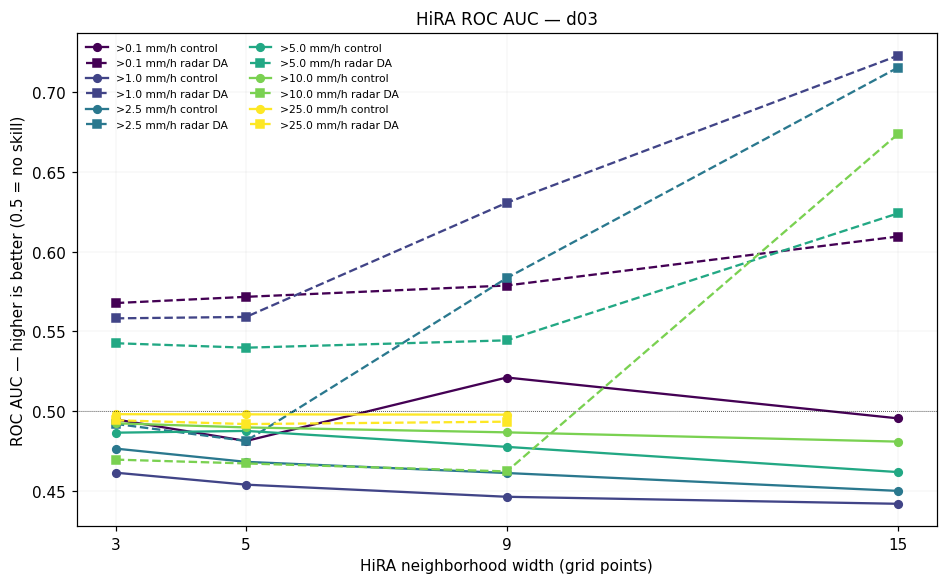

HiRA

ROC AUC — d03

MODE

Centroid distance — d02

109.3→113.3 km (6 vs 5 matched hrs).

MODE

Centroid distance — d03

65.1→58.8 km (3 matched hrs).

MODE

Intensity ratio — d02

MODE

Intensity ratio — d03

MODE

Area ratio — d02

MODE

03 · Verification C3 · 2024-12-16 — free forecast vs radar truth, control vs radar-cycled WRF

Interactive CREF viewer

Tables (from MET verification CSVs)

Figures

POD heatmap — d02

POD heatmap — d03

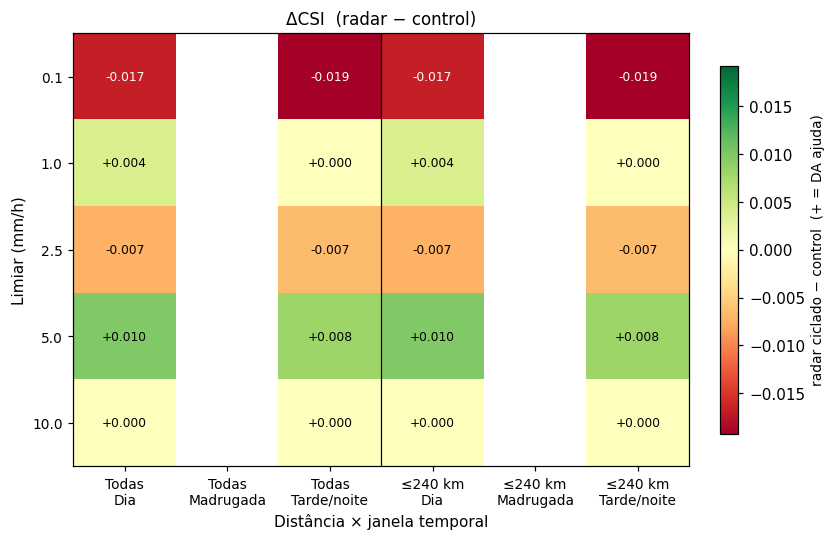

CSI heatmap — d02

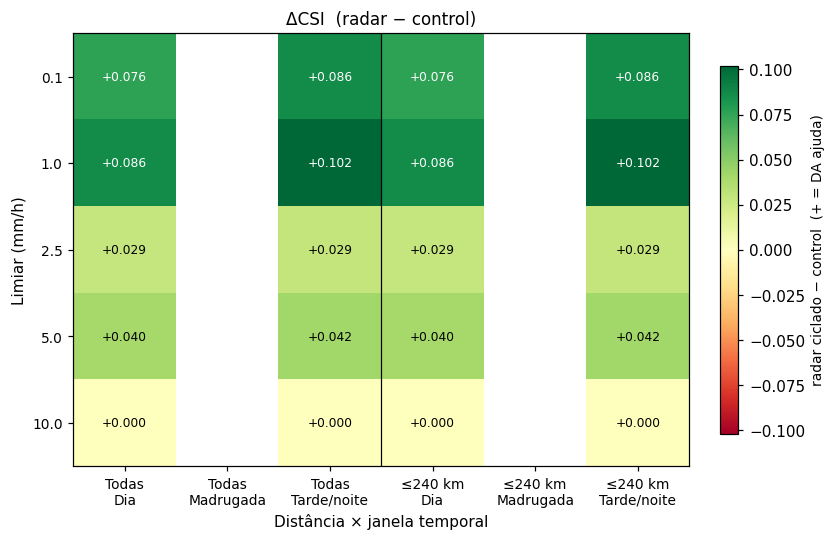

CSI heatmap — d03

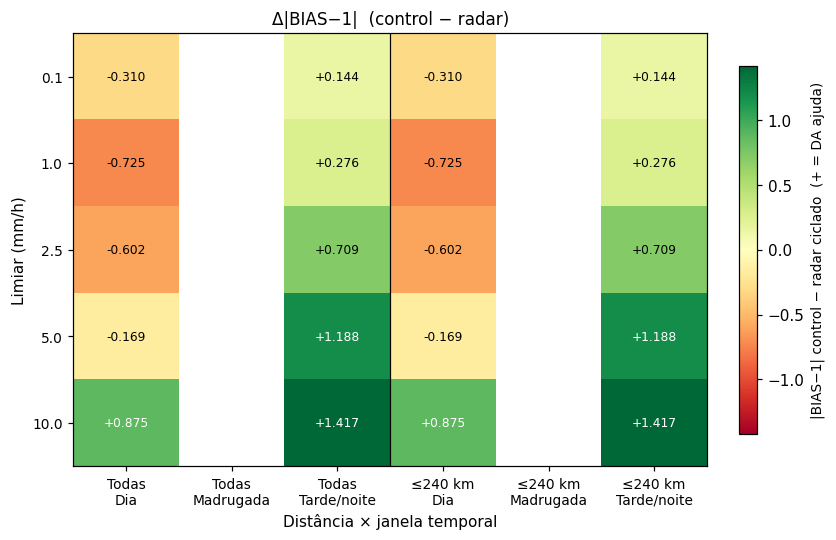

BIAS heatmap — d02

BIAS heatmap — d03

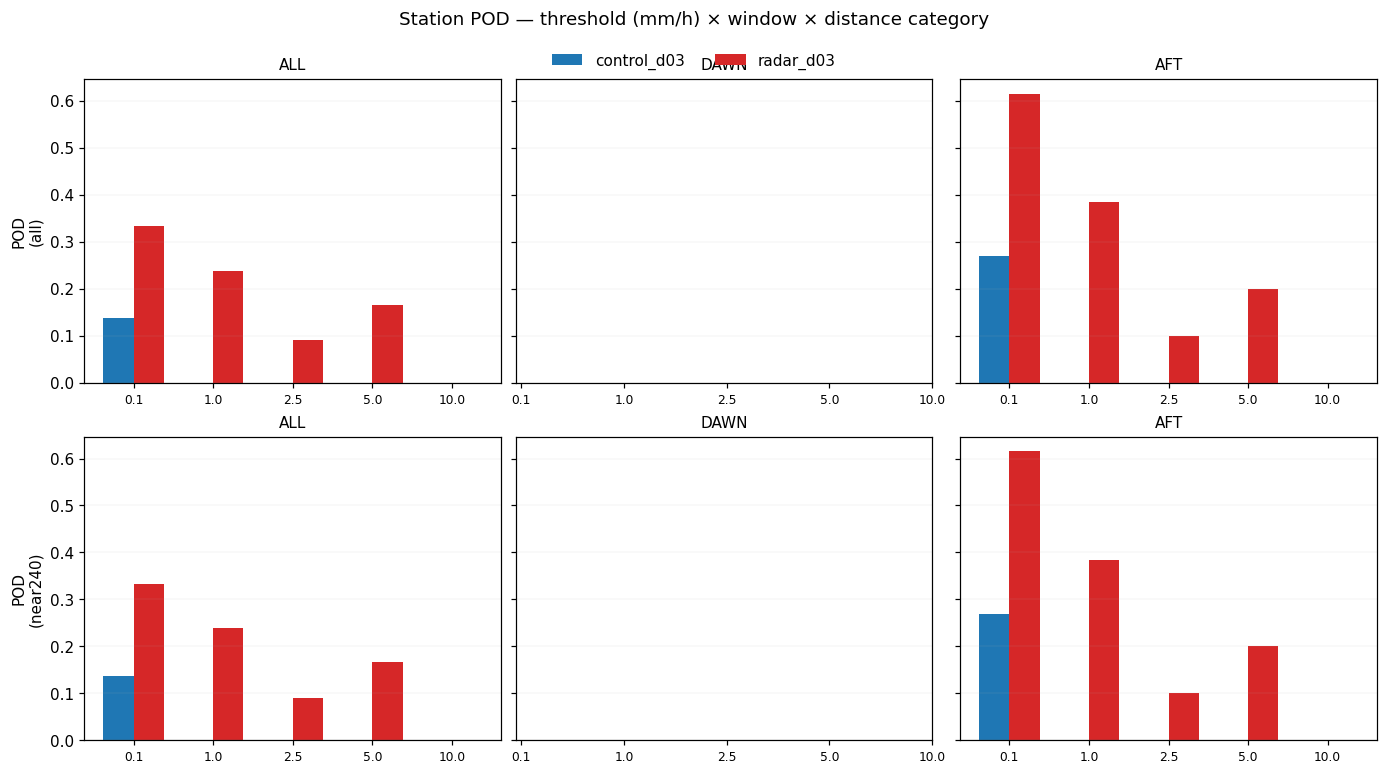

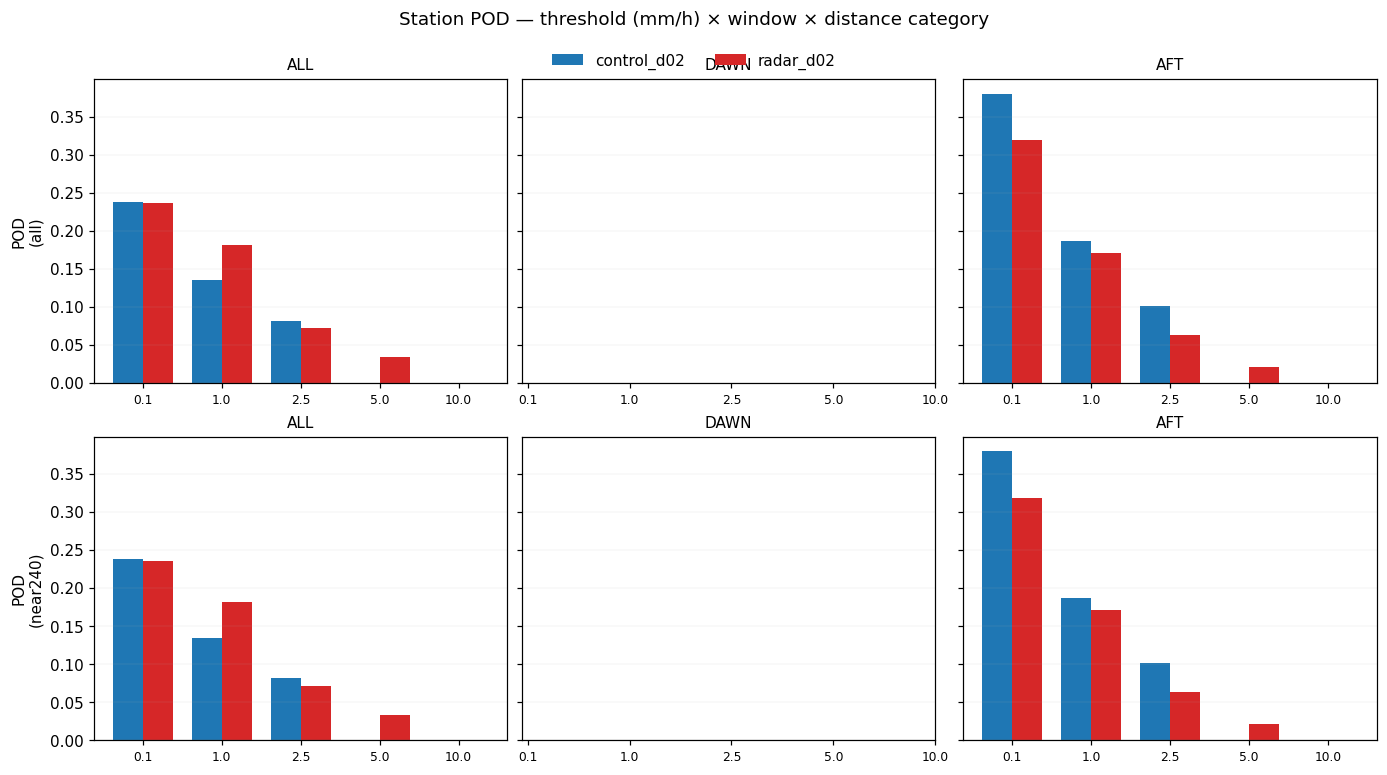

POD — d02

POD — d03

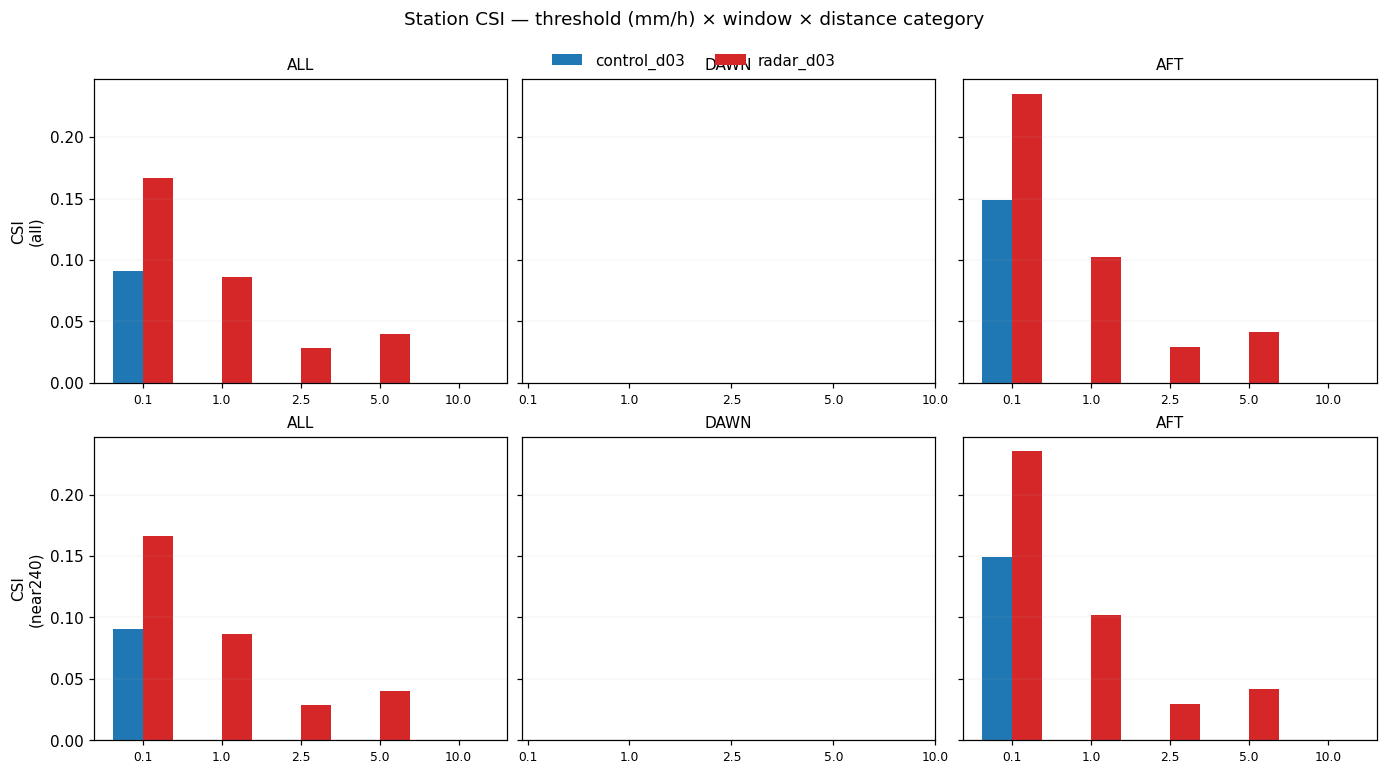

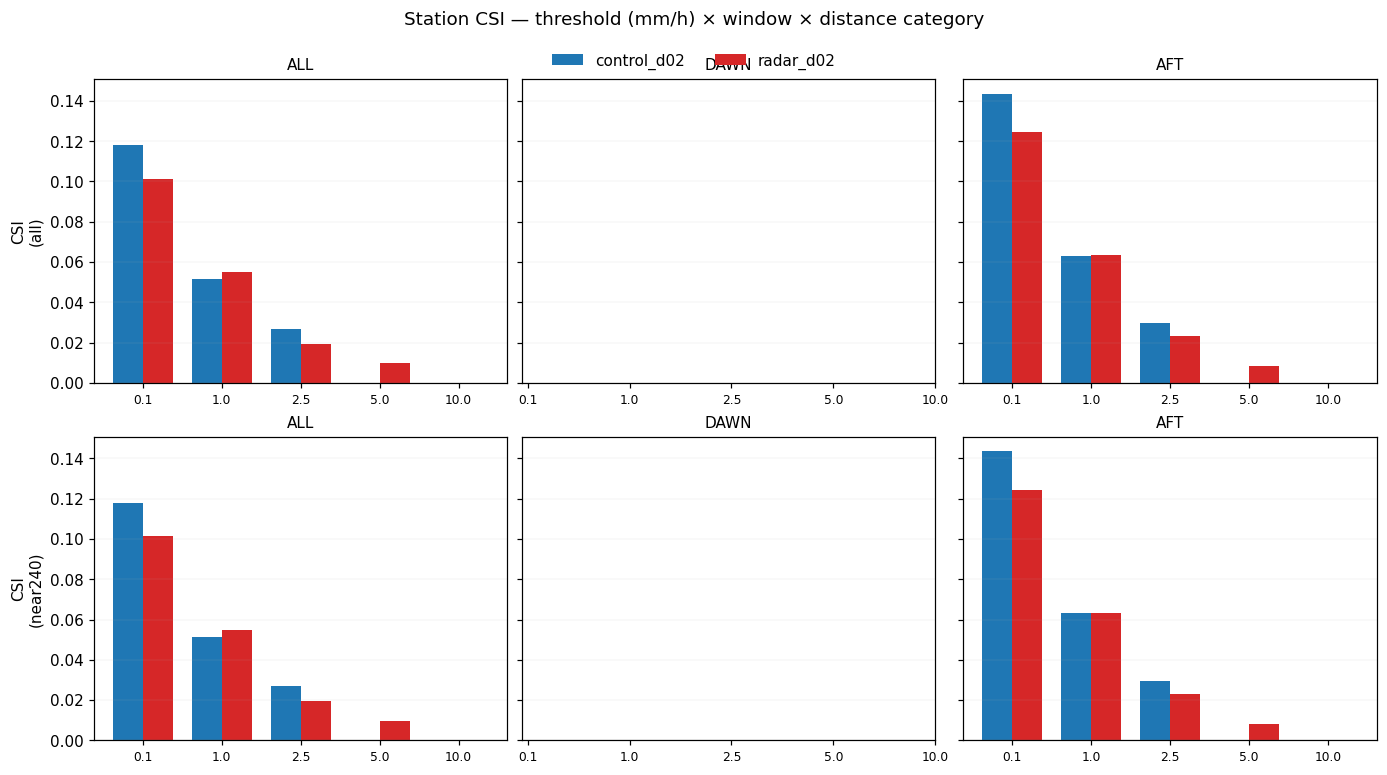

CSI — d02
